# 101 Sequence Detector Using Moore Machine

#### Last time, I presented a Verilog code together with Testbench for Sequence Detector using FSM. The sequence being detected was '1011'.

Sequence Detector Moore AIM: Design a controller that detects the overlapping sequence “0X01” in a bit stream using moore machine. DESIGN Verilog Program- Sequence Detector 0x01 Moore implementation `timescale 1ns / 1ps ///// // Company: TMP. Oct 25, 2017 - VHDL code for Sequence detector (101) using moore state machine and VHDL code for Sequence detector (101) using mealy state machine.

## This VHDL project presents a full VHDL code for Moore FSM Sequence Detector. A VHDL Testbench is also provided for simulation. The sequence to be detected is '1001'.

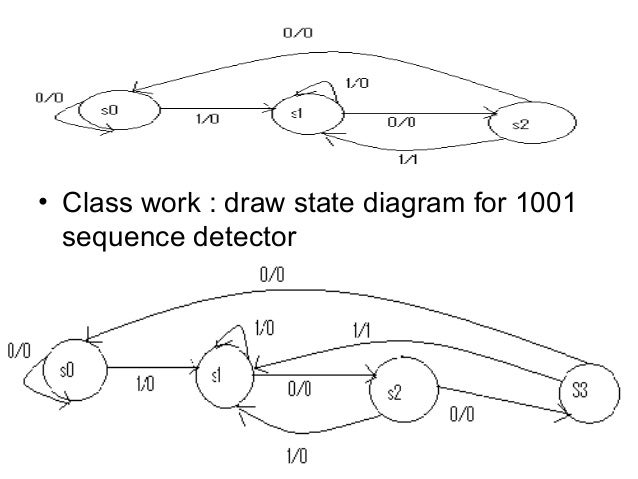

**The Moore FSM state diagram for the sequence detector is shown in the following figure.**

**VHDL code for Moore FSM Sequence Detector is designed based on Moore FSM's state diagram and block diagram:**

**VHDL Testbench for Sequence Detector using Moore FSM:**

**Simulation Waveform for Moore FSM Sequence Detector in VHDL: **

**As shown in the simulation waveform of the VHDL Moore FSM sequence detector, the detector output only goes high when the sequence '1001' is detected.**
